AI Isometric Estimation
for Industrial Projects
The Takeoff AI estimates from your isometrics by measuring lengths, counting fittings and welds, totaling dia-inch and building a priced MTO for material and labor pricing.
Only AI That Estimates From Isometrics

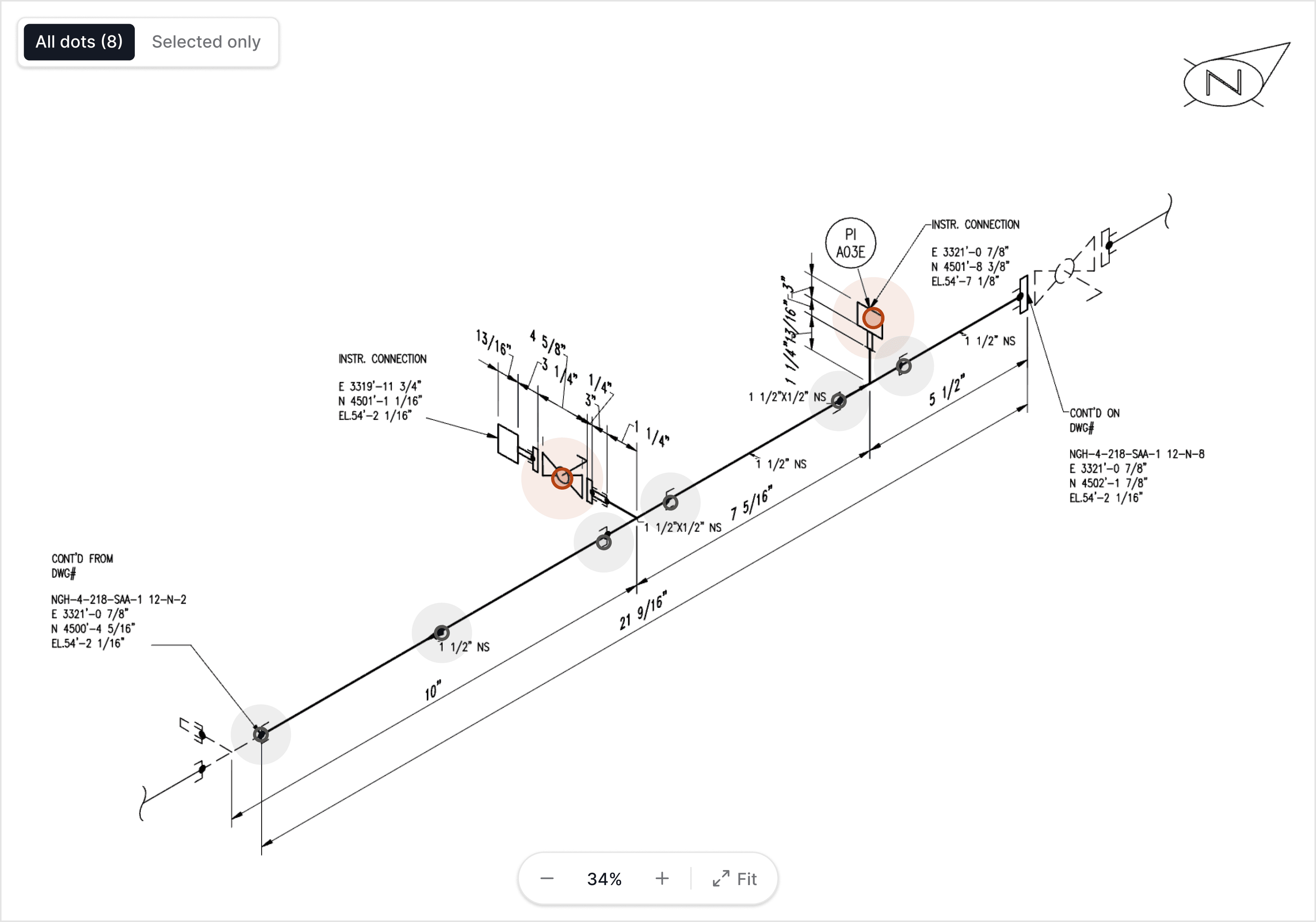

The Takeoff AI traces every count and every measurement back to the drawing.
Click any number in the MTO and it shows you exactly where on the iso it came from, so you verify instead of trust.

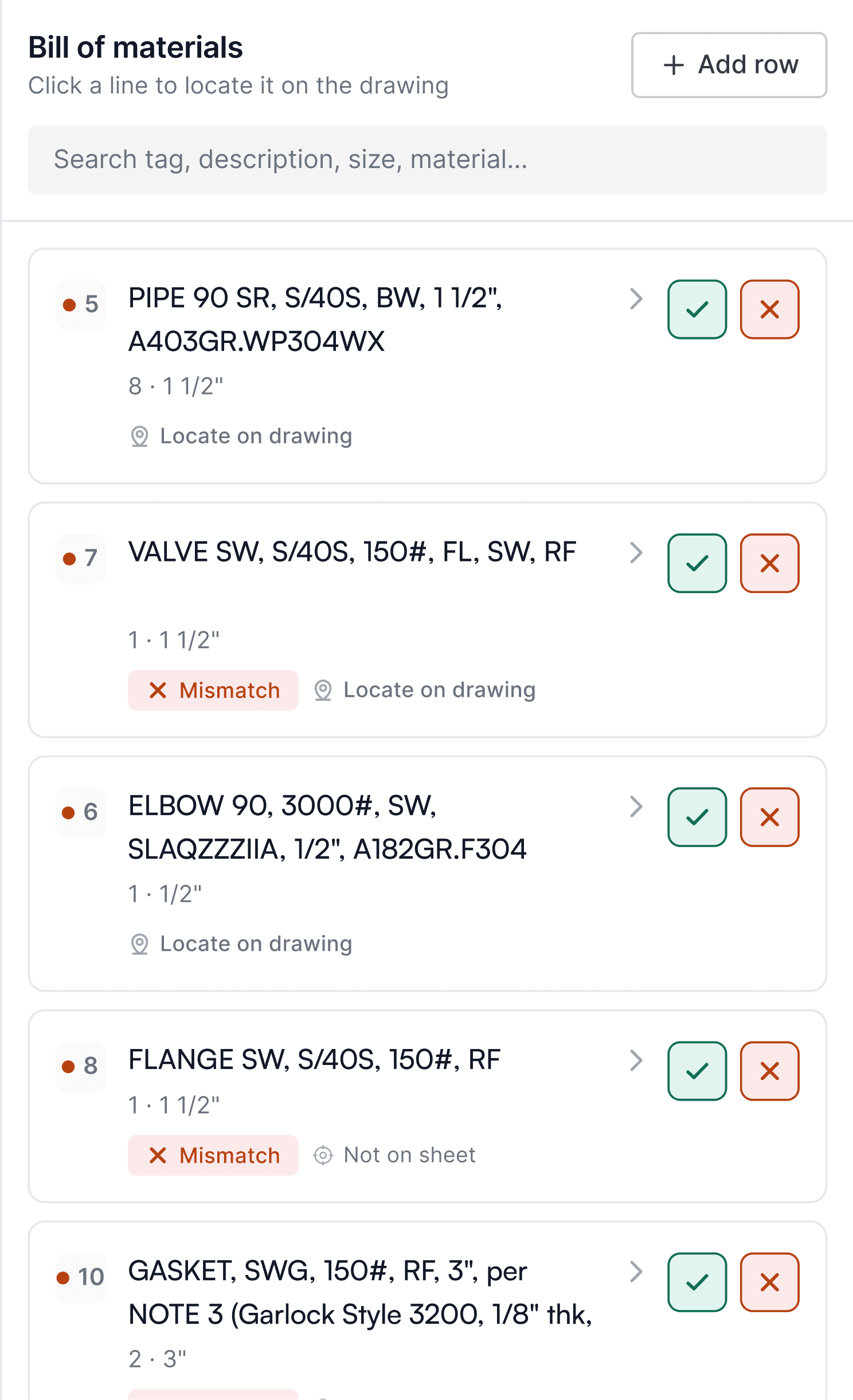

Bill of materials
Click a line to expand it and locate it on the drawing
Flange — weld-neck, 150#, RF, 1 1/2" NS
What this is
Start-of-spool weld-neck flange bolting this run to the upstream match line.
On drawing
Match line, CONT'D FROM DWG# NGH-4-218-SAA-1 12-N-2
Tender / spec
WN150-1.5
Size
1 1/2"
Rating
150#
Material
A105
Qty
1
Sheet / page
12-N-5
Labour rate
0.6 hr
Pipe — seamless, SCH 40S, 1 1/2" NS
What this is
The straight run itself, dimensioned 10" and 21 9/16" off the start flange. Priced by length; everything else on this spool joins it together.
On drawing
10.0 ft across this sheet
Tender / spec
—
Size
1 1/2"
Rating
SCH 40S
Material
A312 TP316L
Qty
10 ft
Sheet / page
12-N-5
Labour rate
0.4 hr/ft
Flange — socket-weld, 150#, RF, reduced to 1/2" NS
What this is
Upstream isolation flange on the instrument branch, ahead of the block valve.
On drawing
Instrument branch, 4 5/8" off the main run
Tender / spec
SW150-0.5
Size
1/2"
Rating
150#
Material
A105
Qty
1
Sheet / page
12-N-5
Labour rate
0.5 hr
Valve — flanged ball valve, 150#, SW ends, RF
What this is
Instrument isolation valve between the two branch flanges feeding the PI A03E connection.Sheet shows FL × SW ends; tender BOM lists SW × SW — confirm before ordering.
On drawing
Branch line, between the two 1/2" flanges
Tender / spec
BV150-0.5
Size
1/2"
Rating
150#
Material
A182 F316
Qty
1
Sheet / page
12-N-5
Labour rate
0.8 hr
Flange — socket-weld, 150#, RF, reduced to 1/2" NS
What this is
Downstream flange closing out the instrument isolation valve assembly.
On drawing
3" below the branch dimension stack
Tender / spec
SW150-0.5
Size
1/2"
Rating
150#
Material
A105
Qty
1
Sheet / page
12-N-5
Labour rate
0.5 hr
Instrument connection — pressure indicator PI-A03E
What this is
Threaded tap for the local pressure indicator, stepped off the main run.
On drawing
N 4501'-8 3/8", EL. 54'-7 1/8"
Tender / spec
PI-A03E
Size
1 1/2"
Rating
—
Material
A105
Qty
1
Sheet / page
12-N-5
Labour rate
0.3 hr
Flange — weld-neck, 150#, RF, 1 1/2" NS
What this is
End-of-spool flange where this run ties into the continuation drawing.
On drawing
5 1/2" past the instrument tee, E 3321'-0 7/8"
Tender / spec
WN150-1.5
Size
1 1/2"
Rating
150#
Material
A105
Qty
1
Sheet / page
12-N-5
Labour rate
0.6 hr
Gasket — spiral-wound, RF, per NOTE 3
What this is
One gasket implied at every flanged joint on this spool (4 total). This single-line isometric doesn't draw a separate gasket symbol — it's bundled into each flange callout.
On drawing
Not drawn separately — inferred from 4 flanged joints
Tender / spec
Garlock Style 3200, 1/8" thk
Size
per joint
Rating
150#
Material
Flexible graphite
Qty
4
Sheet / page
—
Labour rate
0.1 hr ea
The Takeoff AI carries the iso all the way to cost
The Takeoff AI first runs a material takeoff from your isometrics, then derives the hardware nobody draws, estimates labor hours, and prices it all so you get a number you can bid.
Frequently asked questions
The Takeoff AI estimates every line in the iso package by counting pipe by size, spec and schedule, along with fittings, flanges, valves and in-line specialties, quantified per line and rolled up across the set.
Yes, The Takeoff AI can estimate packages of any size with every quantity traceable to the line and sheet it came from.
Yes. The Takeoff AI can use your rate book for material pricing and your own productivity factors on top of MCAA-seeded labor units.
Email your isos to marketing@thetakeoff.ai and we'll run the full estimate, material, labor, and pricing, so you can compare it against your own numbers.
Email your isos
