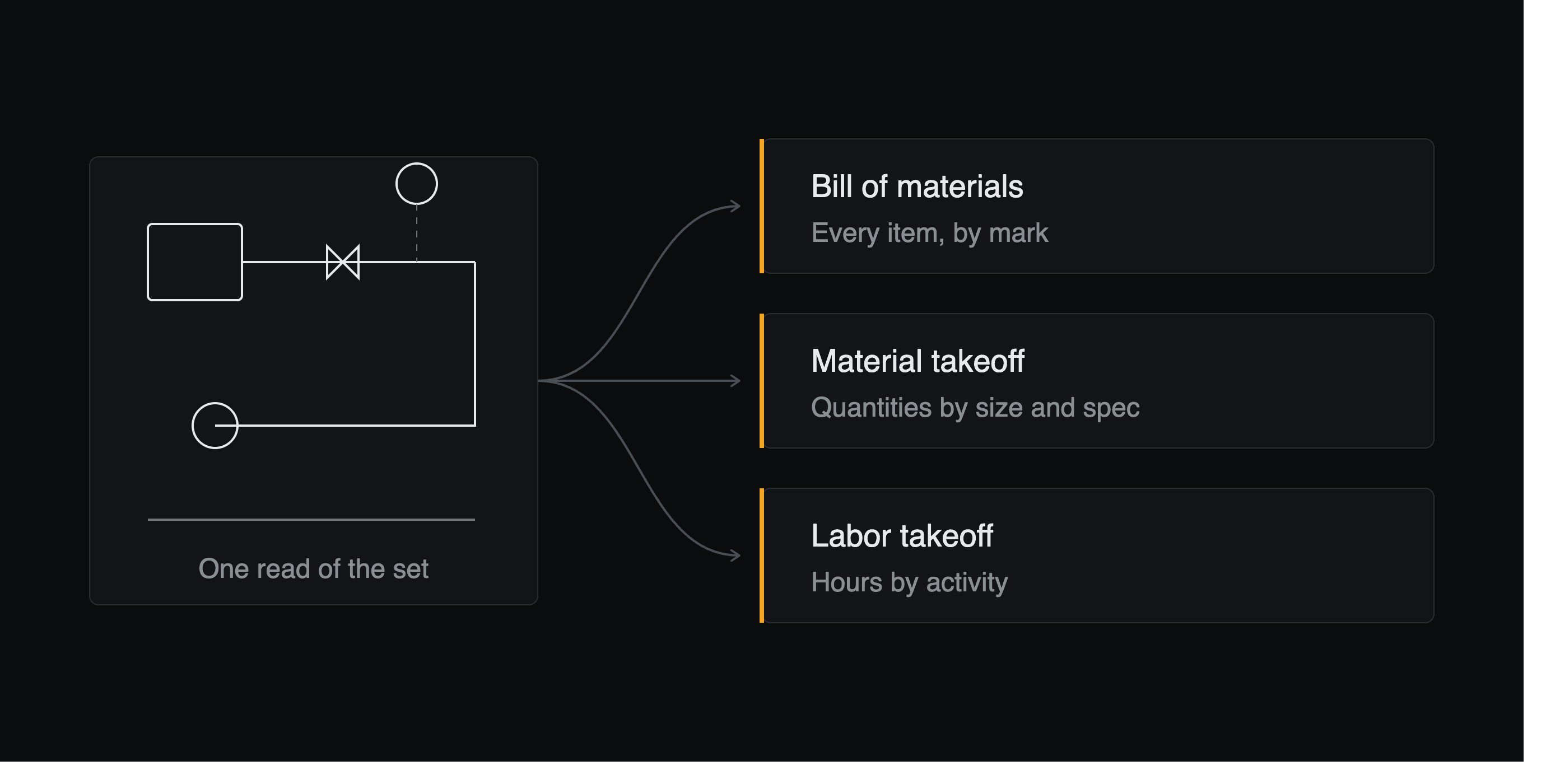

Drawing takeoff software that reads your drawing set and returns an auditable count. See what the AI actually does, what the free and free download options really are, and which drawing types come off one read.
theTakeoff reads the drawing set you already bid from and returns the quantities with a source behind every line, so the count comes off the sheets rather than off a spreadsheet somebody rebuilt from the last job.
Every member tagged, measured, and traced back to the sheet it came from.
What Drawing Takeoff Software Does to a Drawing Set
A takeoff is a handful of jobs repeated across hundreds of sheets, and the hours go into the repetition rather than the difficulty. theTakeoff runs those jobs across every sheet in the set and leaves the judgement calls with your estimator.
Read the Set
Every sheet in the package gets opened and read, including the scans and the late revisions. Schedules, line lists and any bill of material printed on the drawing are read as tables, because those quantities were already counted by the person who drew them.
Count and Measure
Items are counted by mark and by line, runs are measured against the drawing scale, and sizes and specs are carried through from the callouts. Anything the sheet does not support is flagged rather than filled in with a guess.
Hand Over a Usable Bill of Material
The count comes out as a bill of material with a sheet and grid reference on every row, so a number you want to argue with takes a click to check. It exports into the pricing sheet you already use.
What "AI" Actually Means in a Drawing Takeoff Tool
Most tools sold as AI takeoff are doing symbol recognition, which is the hardest way to read a drawing and the easiest one to get wrong. theTakeoff works in the order an estimator does, so the printed facts come first. Schedules, line lists and drawing bills of material are read as tables, measured quantities come next against the drawing scale, and symbol recognition is the fallback for what is left rather than the starting point. The part that stays manual is scope. The software will tell you there are 46 valves on the sheet and where each one sits, and it will not tell you which of them belong in your bid.
More Projects to Price. No More Estimator Bandwidth.
TheTakeoff.ai gives estimating teams the chance to fundamentally change how much they can accomplish with the people they already have. By taking on the most time-intensive parts of takeoff, it creates the capacity to respond to more RFPs and submit more bids without adding headcount. In 2026, that means turning a fixed estimating team into a far more scalable growth engine - pursuing opportunities that previously would have been left on the table.
Trusted by 200+ enterprises across EPC, Infrastructure, and Energy
Drawing Takeoff Software | theTakeoff by ContraVault AI
What does drawing takeoff software do?
It reads the drawings you bid from and produces the count for you, instead of an estimator marking up prints and tallying by hand. theTakeoff returns counts by mark and by line, measured lengths and sizes, with the sheet reference sitting on every row.
Can it read scanned drawings and old PDFs?
Yes, and that is most of the work in practice. Bid packages arrive as flat PDFs with no model behind them, so theTakeoff reads what is printed on the sheet. A poor scan lowers confidence on the items it affects, and those get flagged for review rather than guessed at.
Is there free drawing takeoff software?
Two different things get sold as free. One is a manual measurement tool where you still click every item yourself and the software only holds the tally, which saves paper rather than hours. The other is a free tier of an AI tool, usually capped at a few sheets, which shows you the interface without telling you whether it can read your drawings.
Is drawing takeoff the same as blueprint takeoff?
Same job, different vocabulary. Blueprint takeoff is the older term and it is still common in commercial building work, while industrial estimators say drawing takeoff or material takeoff, partly because an industrial set includes schematics that nobody would call a blueprint.
Can I check where a number came from?
Every count and length traces back to the item on the sheet it came from, along with the rule that produced it. That is the point of the output, because a bid number you cannot check is a bid number you end up recounting.
